SERVO.ALL

Positioning unit

SERVO.ALL

Positioning unit

● Drive and position control integrated into a single device.
● Ultracompact design for simple installation; ø14mm output shaft with 5mm flat key.
● Intelligent connections for easy integration and configuration.
● Integrated and protected electronics.
● Mechanical backlash-free for accurate position control.
● Housing made of anodized aluminum (billet machined), output shaft made of AISI 303 stainless steel.
● Precision gears with surface treatment in reducer stage for very silent rotation with high efficiency and long service life.
● Position of axis maintained also when powered down.
● Communication protocols: Profinet, Ethernet/IP, Powerlink, EtherCAT.
● Ideal for automatic format changeover, assembly, and manipulation applications.
● Perfect repeatability of position adjustments; avoids the need for repeated manual adjustment in areas which are difficult to access or dangerous.

Photogallery

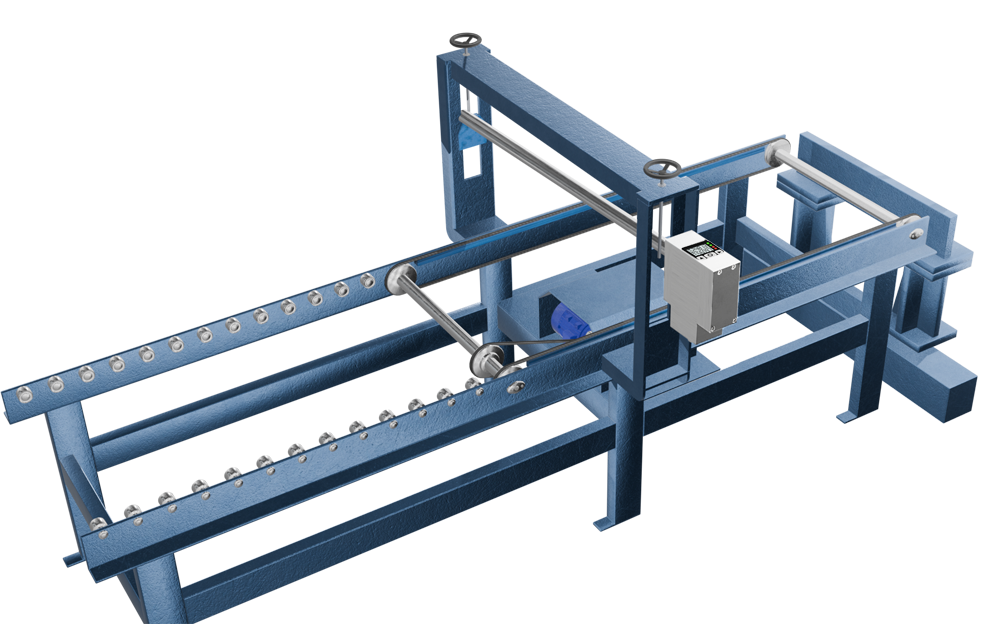

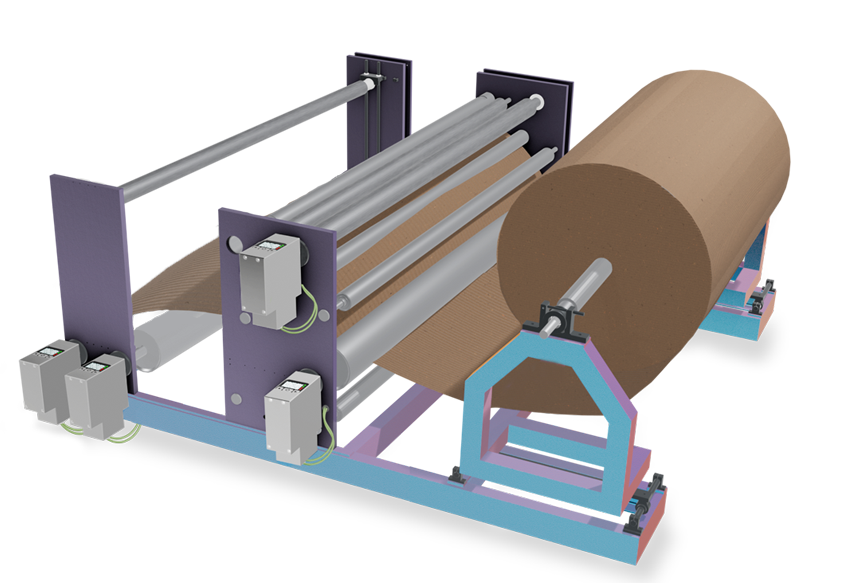

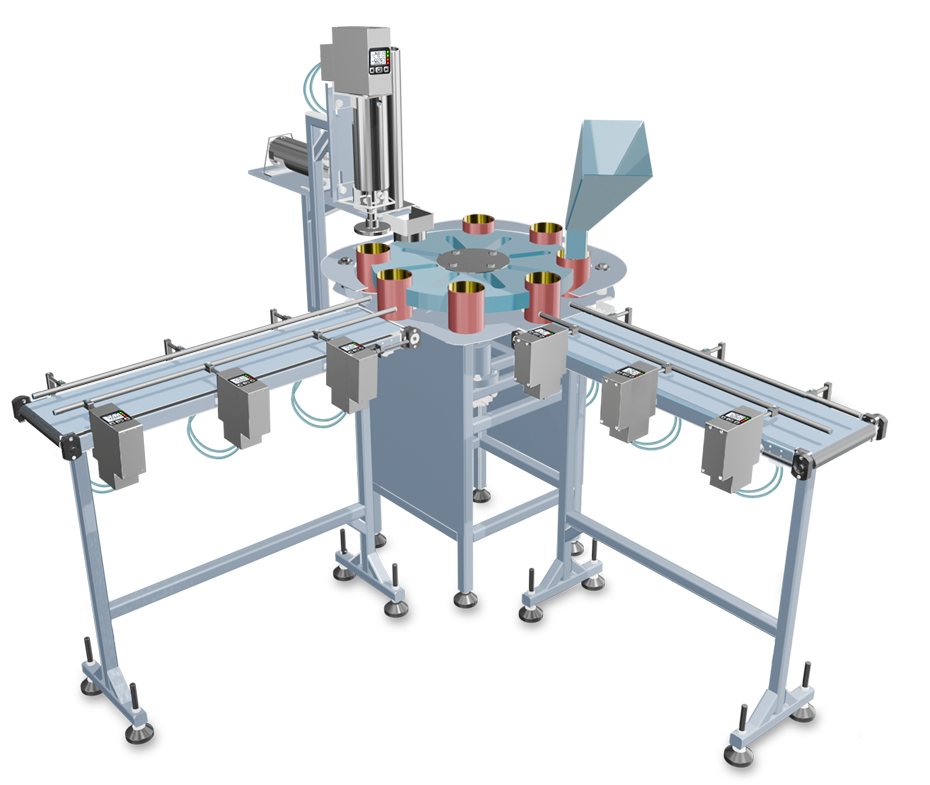

APPLICATION EXAMPLES

SERVO.ALL

1. N° 4 screws M4x8 for fixing

2. Connectors M12

3. Cover for battery change

EMC 2014/30/UE

Absolute position transducer magnetic encoder 1000 pulses/rev
(keyed on the output shaft)

Buffer battery 3.6V ½ AA size, life 6-8 years (depending on the use conditions)

Ethernet port connector two females M12 - 4 poles D-coded

Field bus interface Profinet, EthernetIP, PowerLink, EtherCat

No-load speed 90 Rpm

Output hollow shaft Ø14mm H7 with 5mm lowered key

Power supply 24Vdc 20%; max absorbed current 6 A

Power supply connector male M12 - 4 poles A-coded

Protection degree IP54

Relative humidity 10-85%

RoHs 2011/65/UE

Working temperature 0-60°C

Torque	4 Nm	6,5 Nm	9 Nm
Speed	75 Rpm	65 Rpm	55 Rpm
Absorbed current	2,5 A	3,5 A	5,5 A
Duty cycle	50%	20%	10%

66/5: these gearboxes are suitable for the transmission of rotating motions between two shafts at right-angles.
• Available with reduction ratio: 1:1
• Aluminium case, black anodised; stainless steel shafts AISI 303
• Torque 12 Nm

➜ for more complete information, see 66/5
